Understanding and Preventing Water Hammer
What Water Hammer Really Is (and Why It’s So Violently Destructive)
Water hammer is not just “noise in the pipe.” It’s a pressure surge that occurs when steam and liquid water interact in ways the system wasn’t designed to handle. Steam moves fast. Condensate does not compress. When a slug of condensate sits in a pipe and steam accelerates into it, the condensate becomes a moving mass. That mass can reach high speed and then collide with an elbow, valve, reducer, or dead end. The collision sends a shockwave through the piping.
Two things make this especially destructive:
Condensate is dense and incompressible. Even a small volume carries huge kinetic energy when moving at steam velocity.
Steam systems are full of direction changes and flow restrictions. Every elbow, control valve, and tee is a potential impact point.
The characteristic symptoms—sharp hammering or banging, pipes “jumping,” vibration, and fluctuating pressure—are warnings that the system is experiencing forces far beyond normal design loads.
What Causes Water Hammer
Water hammer typically develops when condensate is not properly drained or when steam and water share the same line without sufficient separation. The most common causes in industrial steam systems include:
1. Failed or Incorrect Steam Traps
Steam traps are the system’s automatic drains. If a trap fails closed, condensate backs up into the steam main or equipment. If it fails open, high volumes of steam blow through to the return, creating flashing, instability, and potential hammer in the return side.
Equally common: the wrong trap type or wrong sizing for the application. A trap that can’t pass the condensate load will behave like a trap that failed closed.
2. Poor Piping Pitch and Low Points
Steam mains should be pitched in the direction of flow so condensate naturally drains to drip legs and traps. If the line is flat, back-pitched, or sagging between hangers, low points become condensate pockets. Those pockets are perfect places for slugs to form.
3. Improper Startup and Shutdown
Cold piping condenses steam rapidly. If full steam pressure is applied to a cold main, condensation rate spikes, traps can’t keep up, and condensate slugs form. The first wave of high-velocity steam then drives those slugs down the line.
Shutdown can also trigger hammer. As pressure decays, steam collapses quickly, pulling condensate into areas it normally doesn’t occupy.
4. Control Valves and Modulating Loads
Fast-acting or oversized control valves can “dump” steam into equipment too quickly. When the valve opens, steam rushes in, meets accumulated condensate, and accelerates it.
This is common on:
Heat exchangers during load swings
Large coils in air handlers or process heaters
Kettles and jacketed vessels
5. Condensate Return Problems (Backpressure / Flashing)
If the condensate return line is undersized, poorly vented, or subject to high backpressure, condensate can stall. When hot condensate hits a lower pressure region, it flashes to steam, creating turbulent two-phase flow. That turbulence can become hammer in the return side.
6. Equipment Without Adequate Drainage
Any steam-heated equipment must drain condensate continuously. If coil headers, exchangers, or turbines don’t have proper drainage points and traps, condensate accumulates inside the equipment—and hammer often happens inside the unit before traveling into the piping.
Types of Water Hammer (Helpful for Troubleshooting)
Not all hammer forms the same way. Knowing the flavor helps you diagnose faster:
Condensate Slugging
The “classic” hammer—condensate pools, steam drives it forward, impact occurs at a fitting. Loud bangs, pipe movement.
Steam Collapse / Vacuum Hammer
Steam enters a cold line and collapses rapidly, pulling condensate into a void at high speed. Often happens at startup, after isolation, or in poorly vented mains.
Return-Line Hammer
Flashing condensate, backpressure, or lift conditions create unstable flow in condensate returns. Sounds more like rapid rattling or “machine-gun” knocking.
How to Avoid Water Hammer
Prevention starts with proper system design, correct operating practices, and consistent maintenance. Here are the key practices that make the biggest difference:
1. Ensure Proper Drainage in Steam Mains
Pitch mains in the direction of flow (typical 1 inch per 20 feet where feasible).
Install drip legs at regular intervals and before/after major equipment.
Use the right trap type for the job (often float & thermostatic or inverted bucket for drip service).
Keep strainers clean so traps don’t starve.
Rule of thumb: any place condensate can collect needs a planned path out.

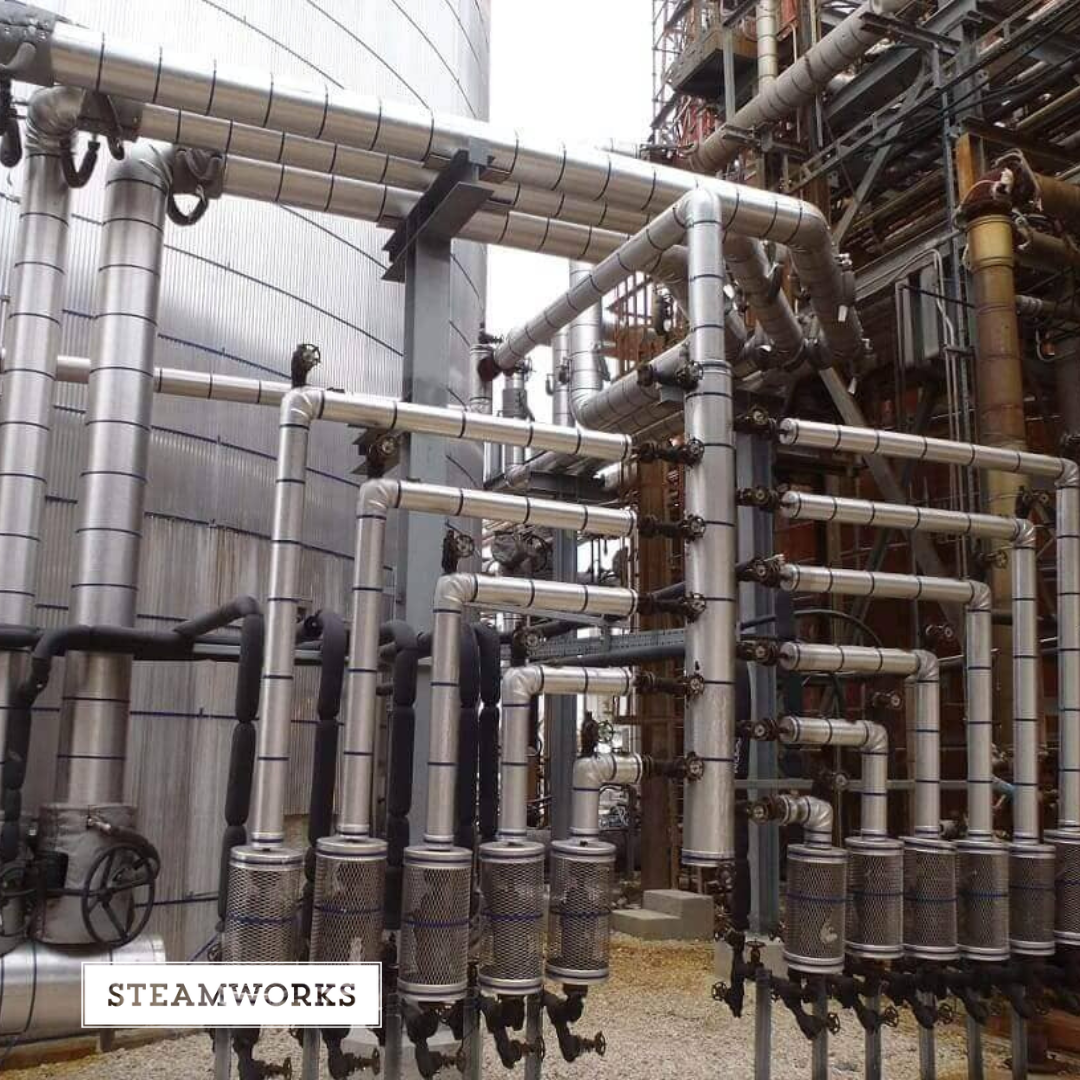

2. Insulate Steam and Condensate Lines
Insulation reduces premature condensation in mains and stabilizes system temperature. Less condensate formed in the main = less risk of slugging. It also helps traps handle steady loads instead of surging loads.
3. Follow Correct Startup Procedures
Startup is when most hammer occurs. A safe warm-up looks like this:
Open bypass or warm-up valves first.
Crack the main steam valve slowly.
Let the line warm and traps clear condensate.
Bring pressure up in stages.
Only then open downstream control valves or equipment isolation.
This sequencing lets the system drain before steam velocity climbs.
4. Maintain Steam Traps Proactively
Trap surveys should be routine, not reactive. A failed trap today is hammer tomorrow. Good programs include:
Regular ultrasonic or temperature checks
Documented trap status and repairs
Replacement of chronically failing traps
Verification that trap sizing matches load
5. Design Condensate Returns to Move Condensate Reliably
Avoid unnecessary lift when possible.
Size returns to prevent flooding.
Vent flash tanks and receivers properly.
Keep return piping pitched and free-flowing.
If condensate can’t get home, it will pile up somewhere—and hammer will show you where.
6. Use Separators and Drainers at Critical Points
Steam separators before sensitive equipment remove entrained water. Combined with proper trapping, this keeps supply steam dry and prevents slug formation downstream.
Early Warning Signs Operators Should Never Ignore
Water hammer often gives subtle hints before it gets violent. Watch for:
Intermittent knocking at startup or load changes
Pipes vibrating or shifting on supports
Unstable pressure/temperature readings
Trap discharge that alternates between blowing steam and dumping water
Corrosion in low points or near drip legs
Repeated gasket failures or valve seat damage
These are “pay attention now” signals. Hammer is rarely a surprise if people listen early.
What to Do If Water Hammer Occurs
If water hammer happens, it’s critical to act immediately and safely:
Reduce steam flow to the affected area (don’t slam valves shut—close gradually when possible).
Isolate the section if needed.
Let the system drain and cool enough to inspect.
Check traps first. A failed trap or blocked strainer is the most common root cause.
Inspect piping pitch, hangers, and low points for pooling or sagging.
Review recent operating events. Hammer after startup, a load swing, or a valve change is a clue.
Do not restart until the cause is identified and corrected.
After any significant hammer episode, inspect:
Pipe supports and guides (for deformation or looseness)
Flanges and threaded fittings (for leaks or movement)
Valves and control stations (for seat or actuator damage)
Traps and drip legs (for blockage or misapplication)
Repeated shocks weaken joints and fittings over time, so even “minor” hammer deserves a root-cause fix.
The Payoff of Prevention
Addressing water hammer promptly protects equipment and personnel, but it also improves efficiency and system longevity. Dry steam transfers heat better, traps last longer, and returns run more reliably. Plants that eliminate hammer usually see:
fewer emergency shutdowns
lower maintenance costs
more stable process temperatures
longer equipment life
In other words, preventing water hammer isn’t just about avoiding a scary bang—it’s about running a safer, smoother, more profitable steam system.
